Description

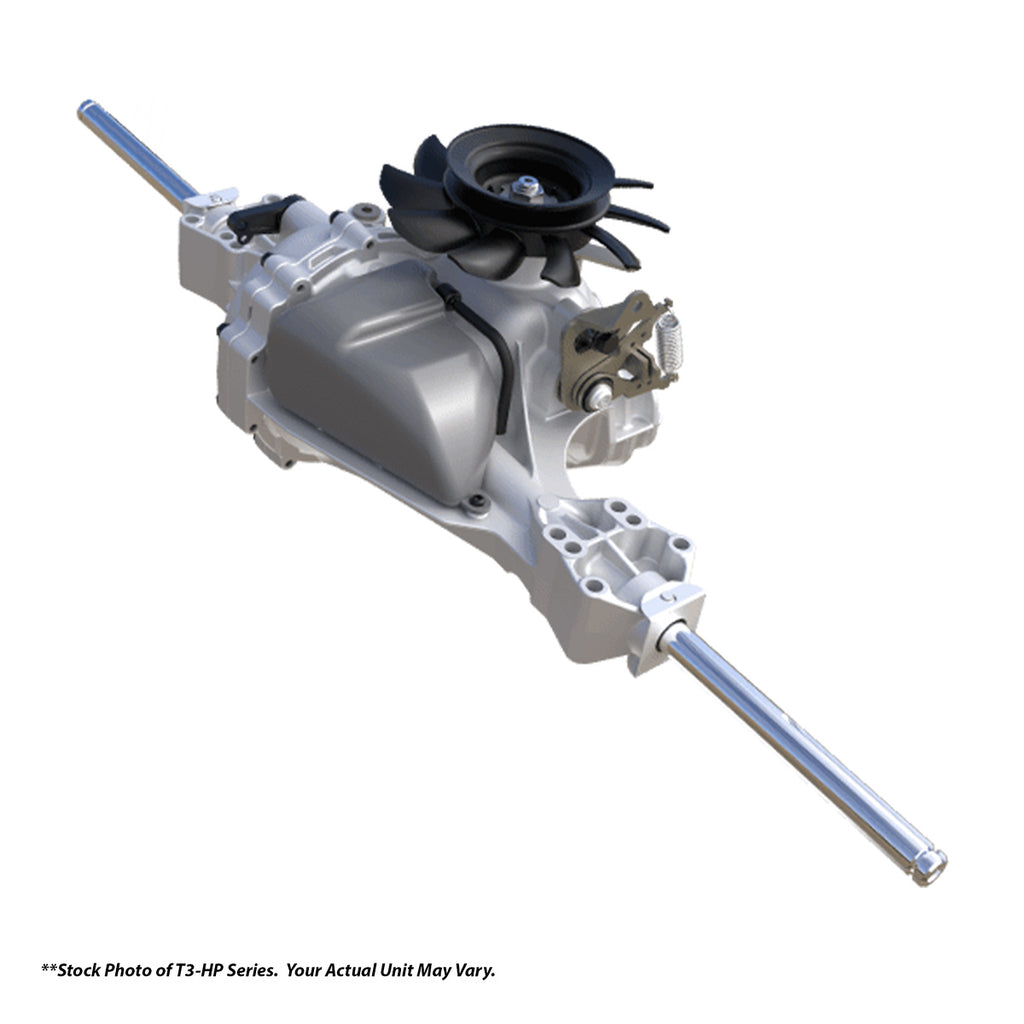

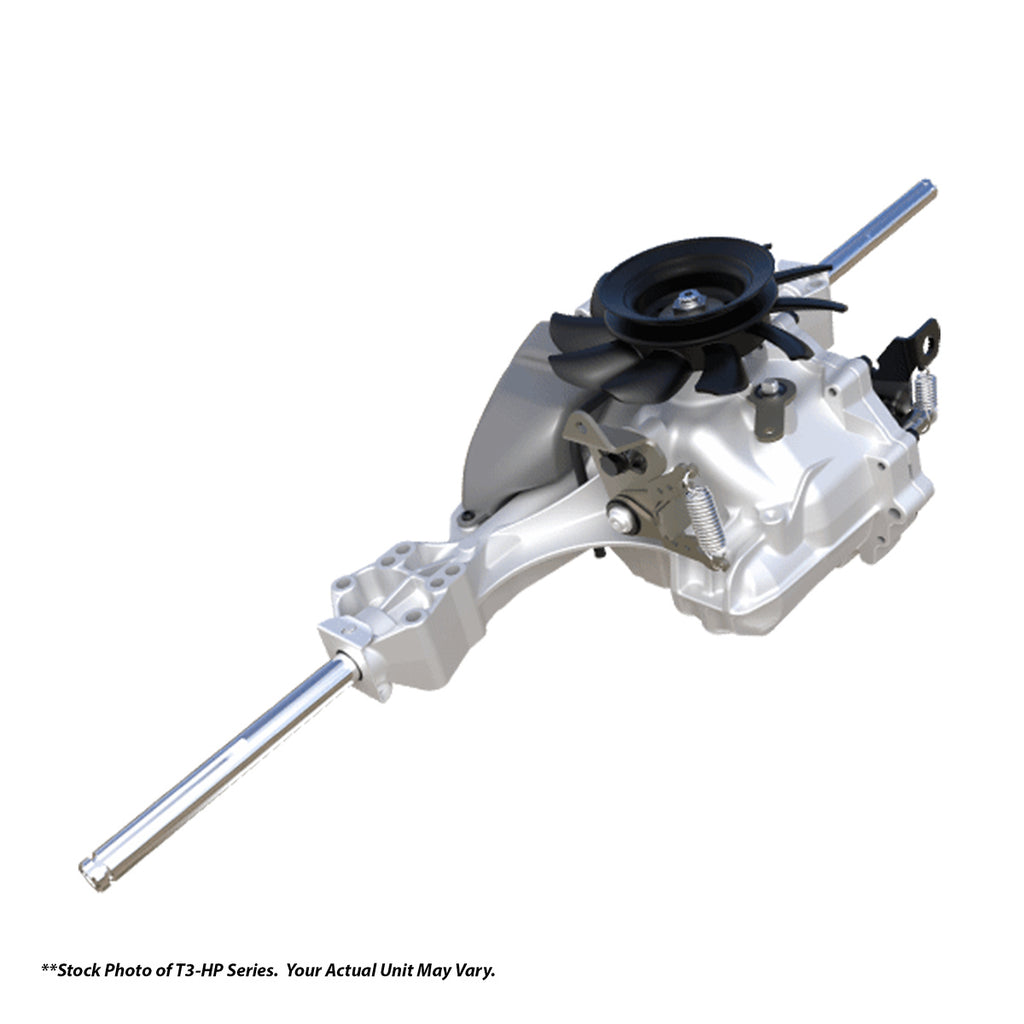

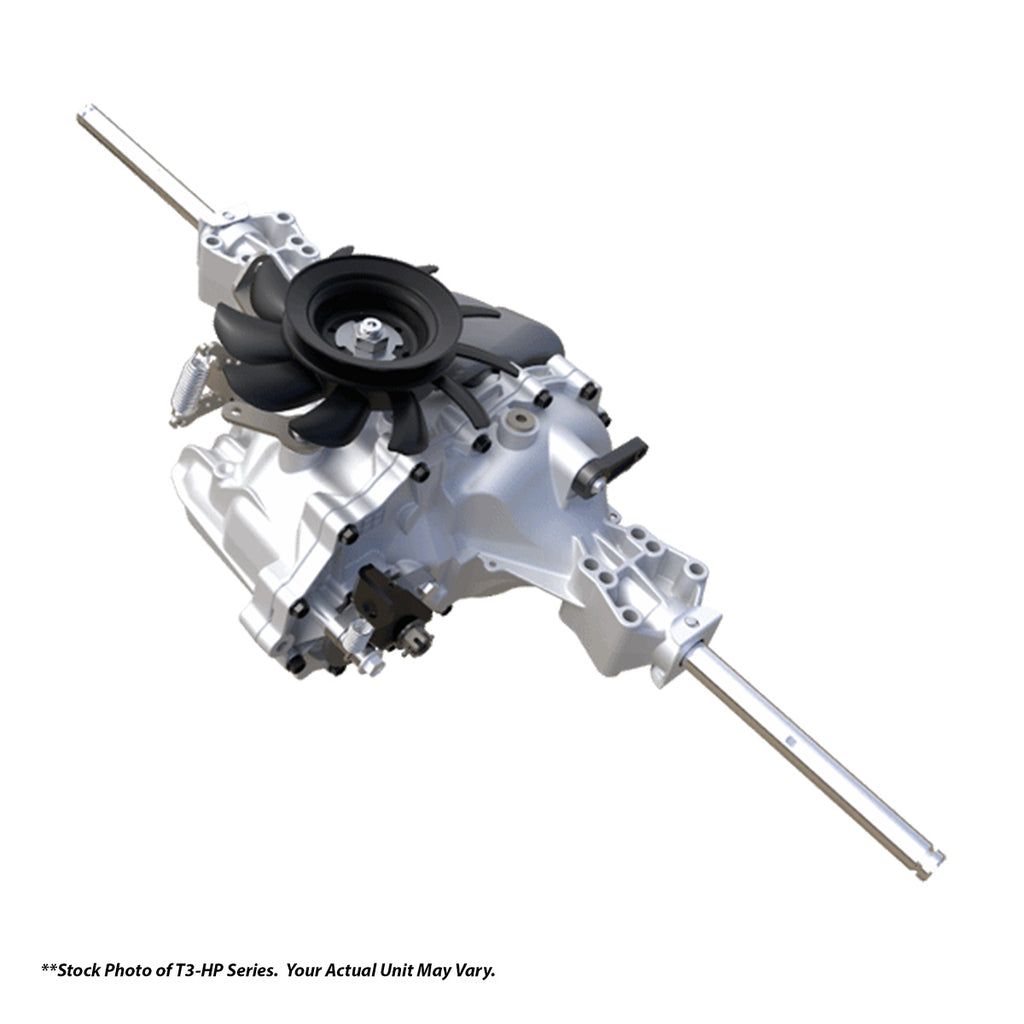

T3-HD™
OPTION OF A MANUALLY-OPERATED, FULL-LOCKING DIFFERENTIAL.
Boasting the highest torque in its class, the integrated design of the T3™ also gives you the option of a manually operated, full-locking differential (turn on when you need it, off when you don’t). Rugged, die-cast aluminum housings and maintenance-free design mean you get years of optimum performance. The infinite speed control gives you precise handling and the sturdy ¾” axle delivers reliable power when you need it.
- Optional full-locking differential
- Sturdy 3/4 in axle
- Infinite speed control for precise handling
- Maintenance-free design for ease of use
SPECIFICATIONS
OVERALL TRANSAXLE REDUCTION
- 27:1
- 70:1
- 91:1
INPUT SPEEDS
- MAXIMUM HI-IDLE (NO LOAD) - 3000 rpm
- MINIMUM (LOADED) - 1800 rpm
OUTPUT TORQUE
- 140 lb-ft [189 Nm]
- 150 lb-ft [203 Nm]
- 160 lb-ft [216 Nm]
CONTINUOUS INTERMITTENT
- 230 lb-ft [311 Nm]
- 290 lb-ft [393 Nm]
- 300 lb-ft [406 Nm]
AXLE SHAFT DIAMETER
- 75 in [19.05 mm]
AXLE SHAFT END OPTIONS
- Keyed or DD
PARKING BRAKE TYPE
- External Disc
WEIGHT OF UNIT
- 28 lb [12.7 kg]
