Description

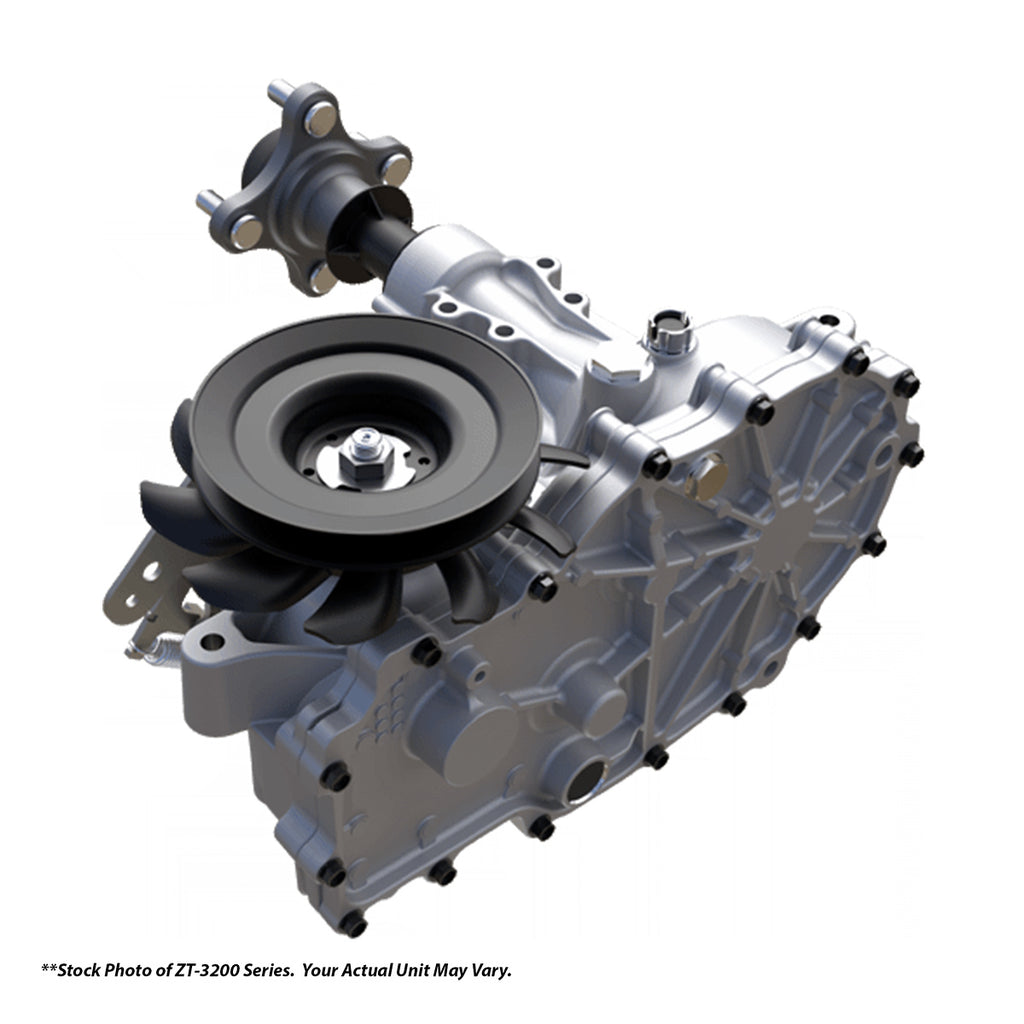

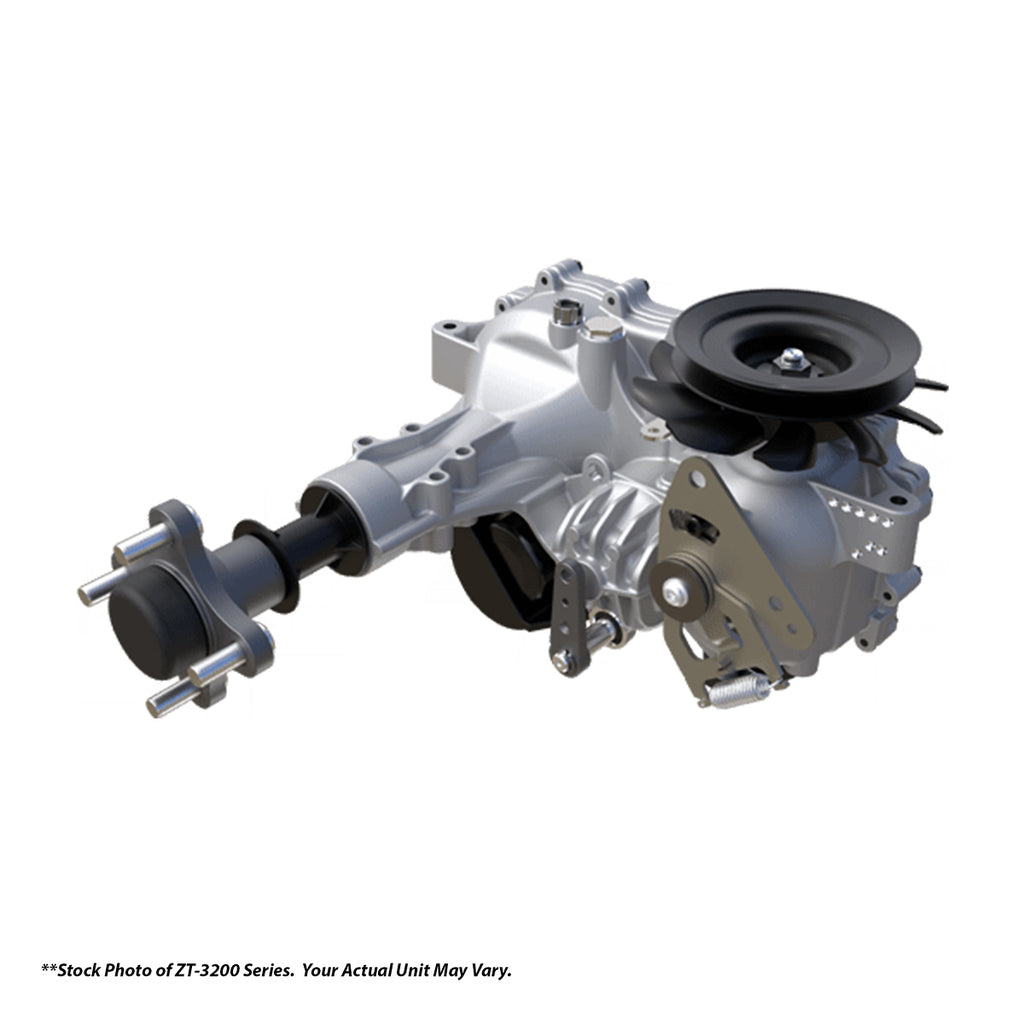

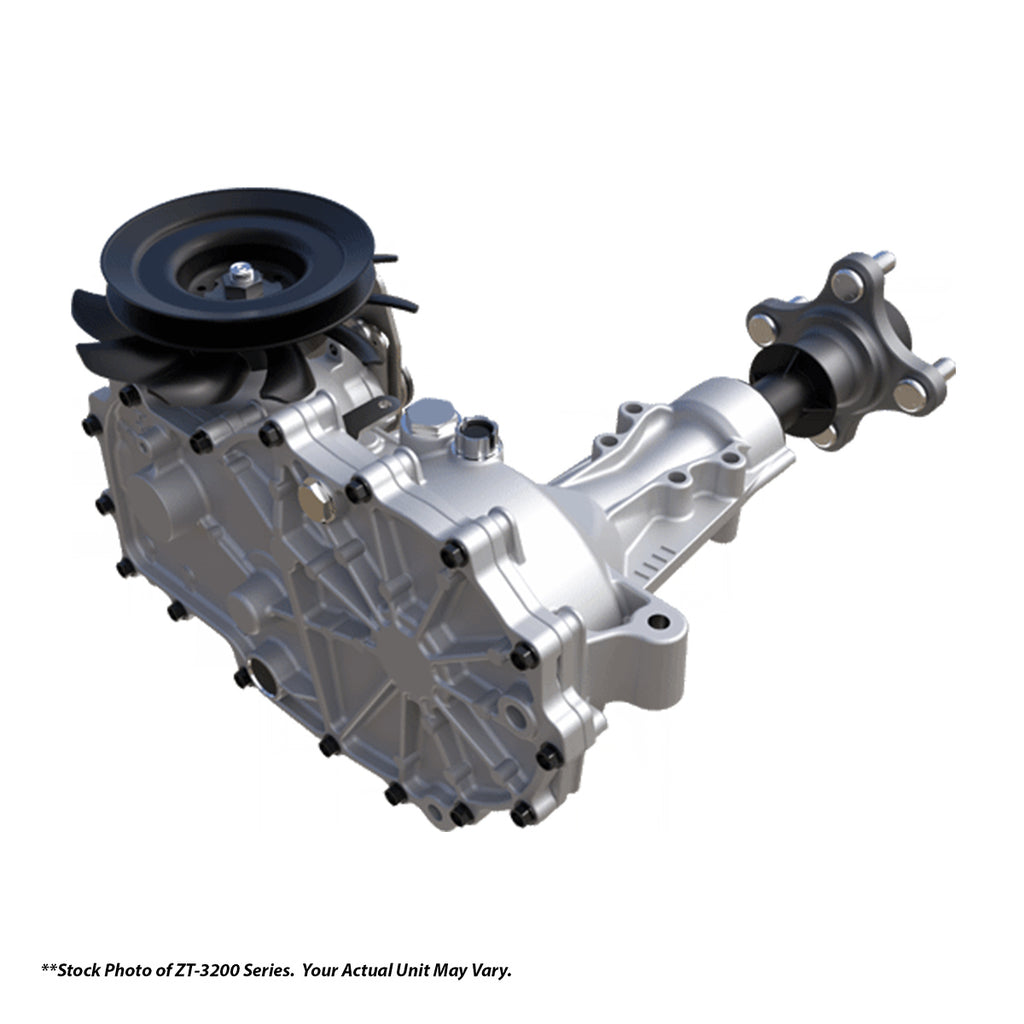

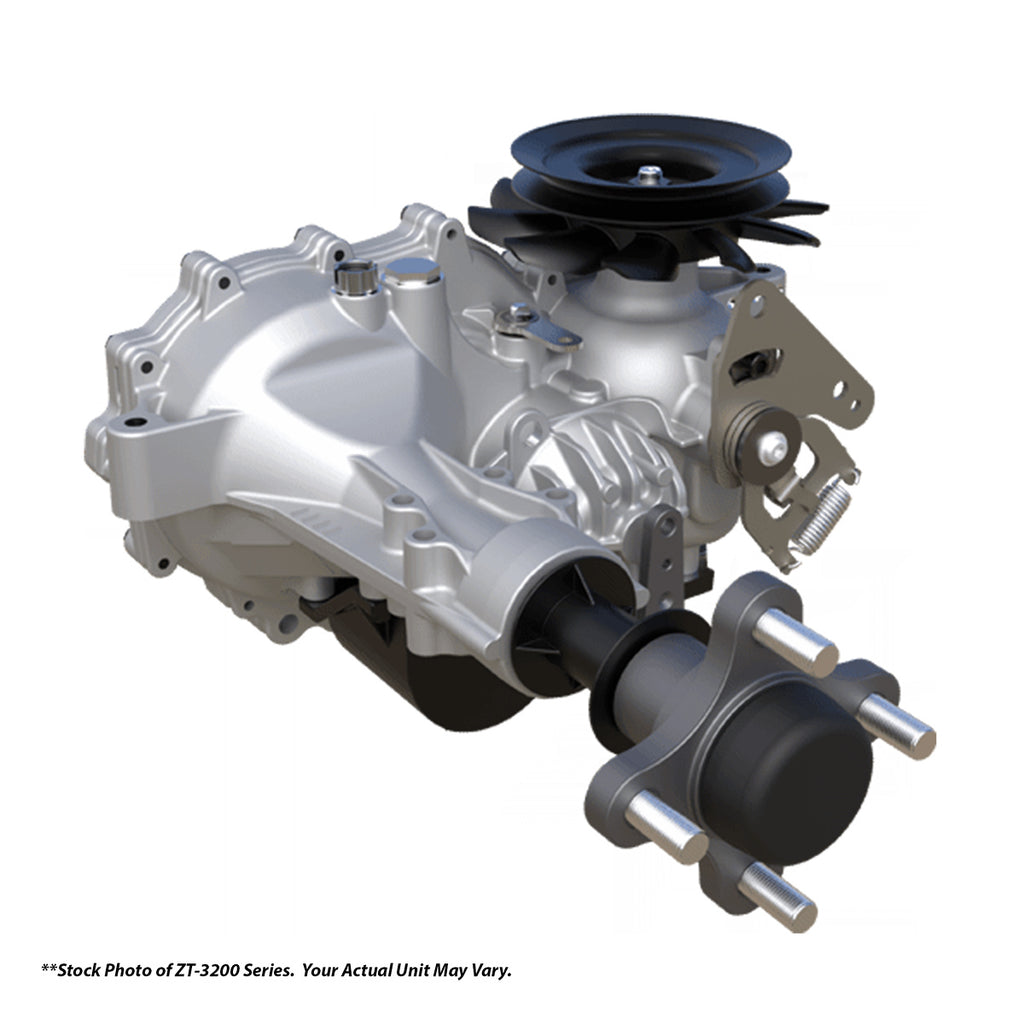

ZT-3200™
COMMERCIAL GRADE TRANSAXLE FOR LIGHTER WEIGHT APPLICATIONS.
In light commercial applications where you need a little more power, look no further than the Hydro-Gear ZT-3200™. In addition to the smooth, high-efficiency 10cc pump and 16cc motor, this system features a durable 1-1/8” axle shaft and delivers an impressive 470 ft. lbs. of torque. The Performance Package includes shock valves to extend system life, durable cut steel gears, and a charge pump.
- Performance package – Shock valves, Cut steel gears, and Charge pump
- Durable 1-1/8″ axle for heavier loads
- Optional internal expansion tank for easier installation
- Standard shock valves for added system protection and extended life
SPECIFICATIONS
OVERALL TRANSAXLE REDUCTION
- TRANSMISSION MODEL ZJ - 20.69:1
- TRANSMISSION MODEL ZL - 24.74:1
- TRANSMISSION MODEL ZM - 27.23:1
PUMP DISPLACEMENT
- 61 in3 /rev [10 cc/rev]
MOTOR DISPLACEMENT
- 97 in3 /rev [16 cc/rev]
INPUT SPEEDS
- MAX HI-IDLE (NO LOAD) - 3600 rpm
- MIN (LOADED) - 1800 rpm
OUTPUT TORQUE
- up to 470 lb-ft [up to 637 Nm]
SPEED
- up to 9 mph [up to 14 kph]
GROSS VEHICLE WEIGHT
- up to 1500 lbs [up to 544 kg]
AXLE SHAFT DIAMETER
- 125 in [28.56 mm]
AXLE SHAFT END OPTIONS
- Tapered
- 4-bolt Flange
- 5-bolt Flange
WEIGHT OF UNIT
- 33 lbs [15 kg]
