Description

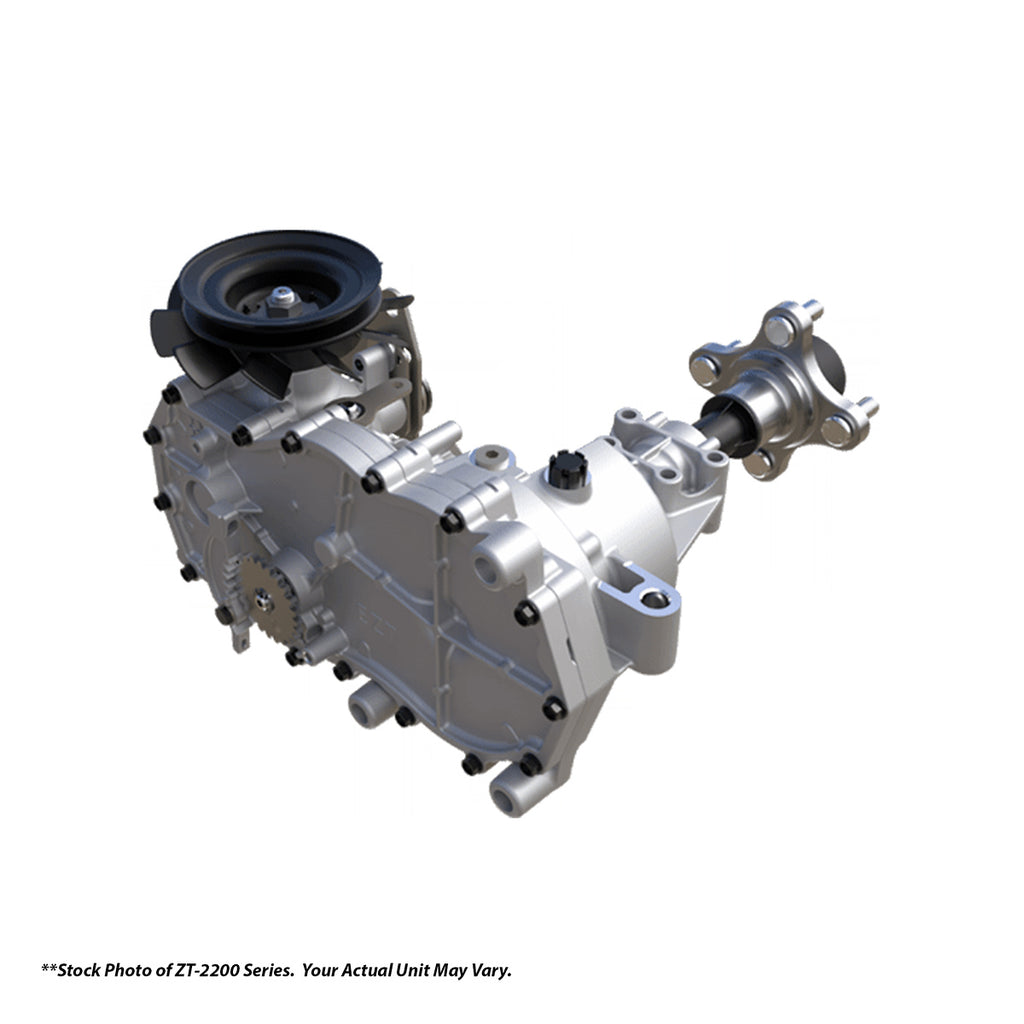

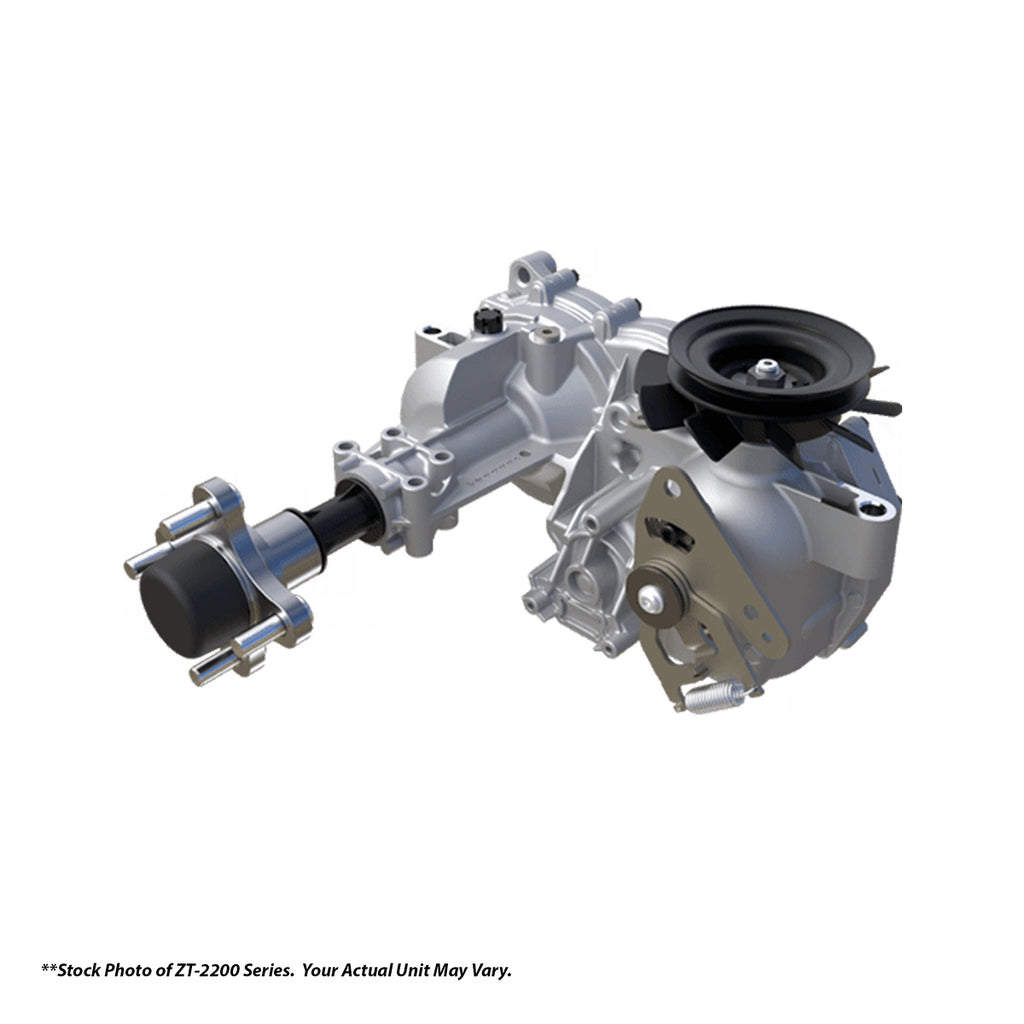

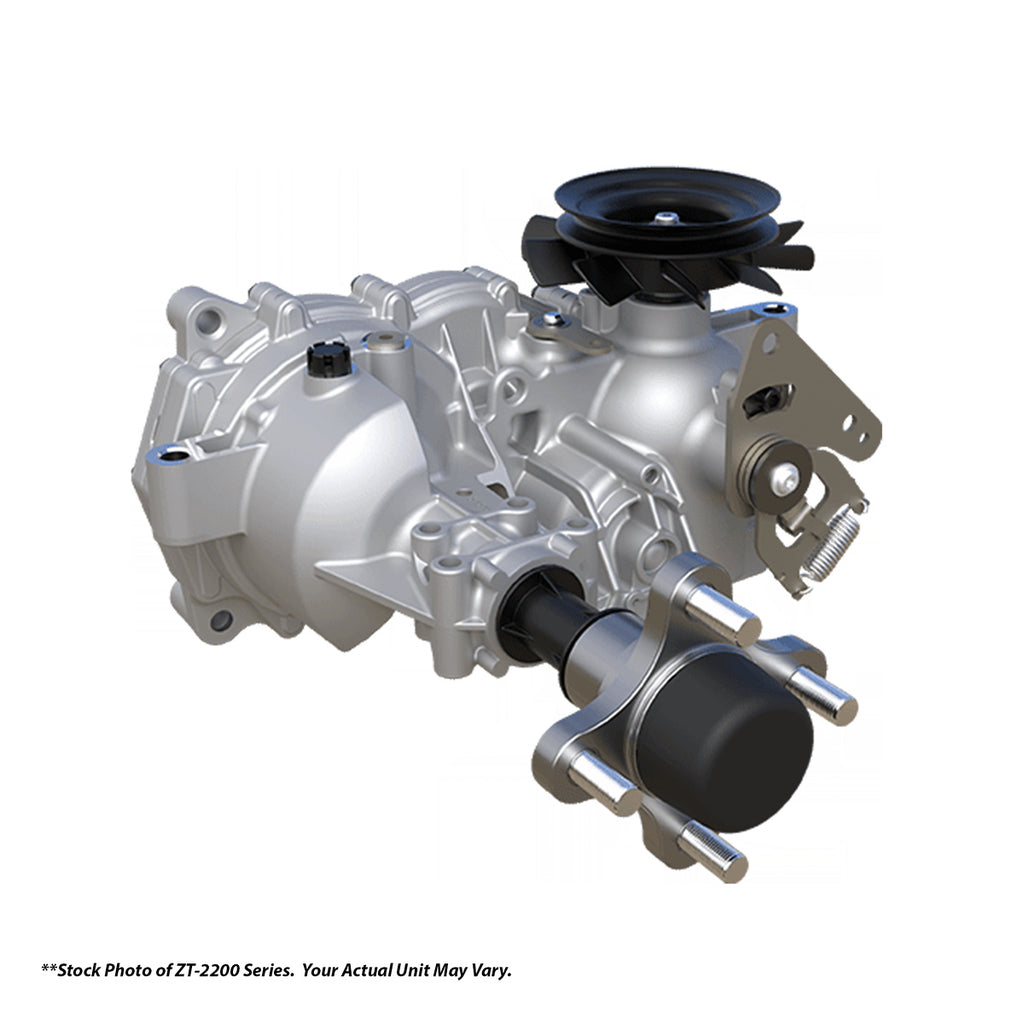

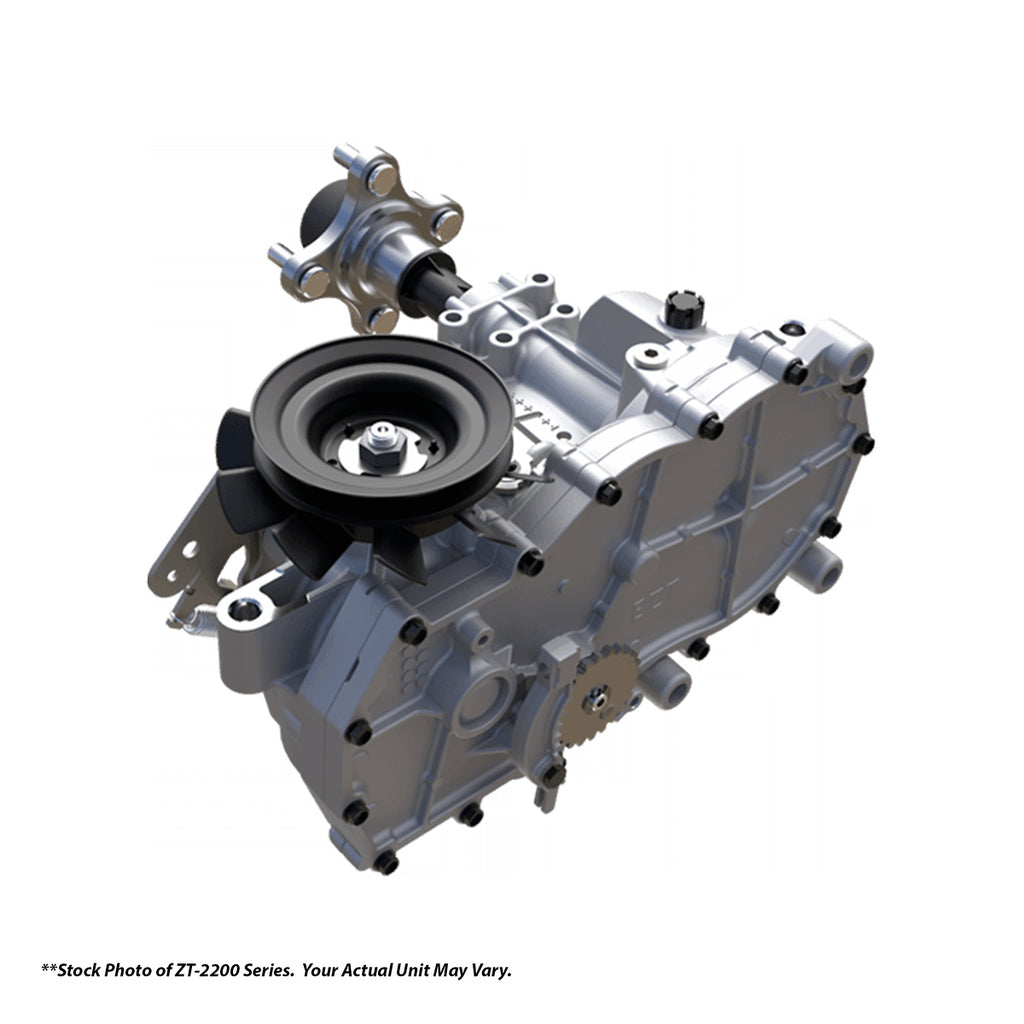

ZT-2200 (EZT®)
HYDRO-GEAR’S MOST POPULAR INTEGRATED UNIT.
The EZT® is a proven performer and our most popular, residential-grade integrated transaxle unit. It delivers surprising power in a compact package thanks to the capable 10cc motor and 10cc pump and 1” axle shaft. The low maintenance design means less time on upkeep and more time on the grass. The internal mesh oil filter extends life while the external cog brake provides maximum holding power.
- Low maintenance design
- Proven performance in a compact package
- Durable 10cc pump & 10cc motor
- Internal mesh oil filter for longer life
- External cog brake for maximum holding power
- External friction brake option
SPECIFICATIONS
- PUMP DISPLACEMENT - 0.61 in3/rev, [10cc/rev]
- MOTOR DISPLACEMENT - 0.61 in3/rev, [10cc/rev]
- INPUT SPEEDS
MAX HI-IDLE (NO LOAD) - 3000 rpm
MIN (LOADED) - 1800 rpm
- OUTPUT TORQUE - up to 215 lb-ft, [up to 291 Nm]
- SPEED - up to 7 mph, [up to 11 mph]
- GROSS VEHICLE WEIGHT - up to 900 lbs, [up to 406 kg]
- AXLE SHAFT DIAMETER - 1.0 in, [25.4 mm]
- AXLE SHAFT OPTIONS - DD, 4-bolt Flange
- WEIGHT OF UNIT - 29 lbs, [13 kg]
