Description

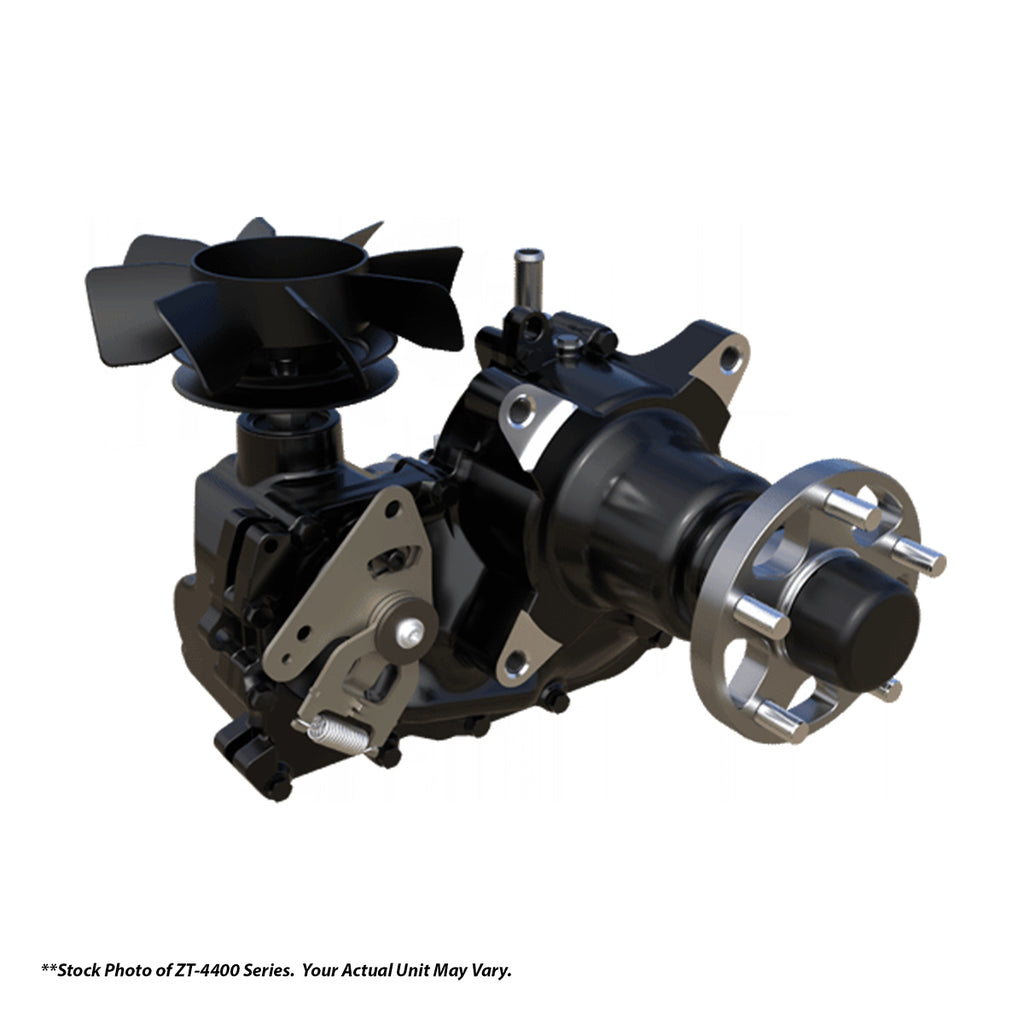

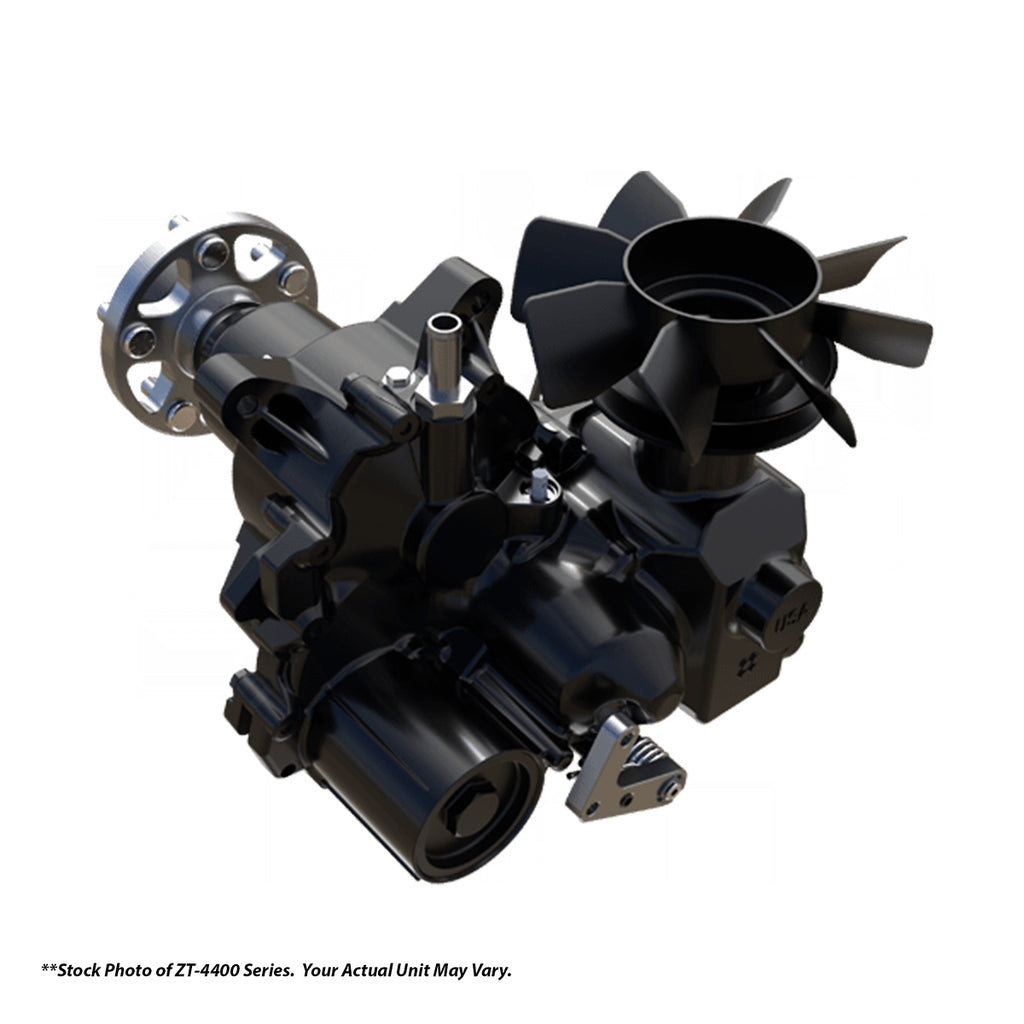

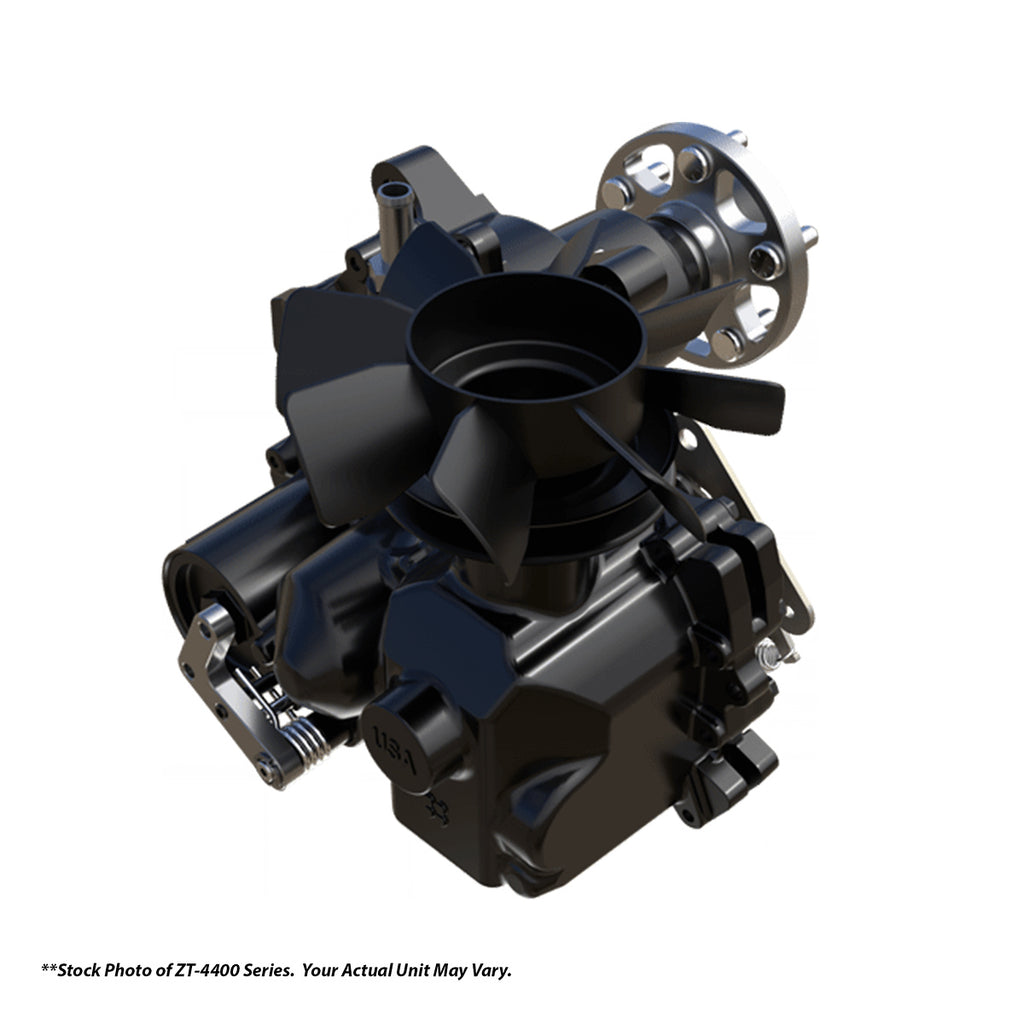

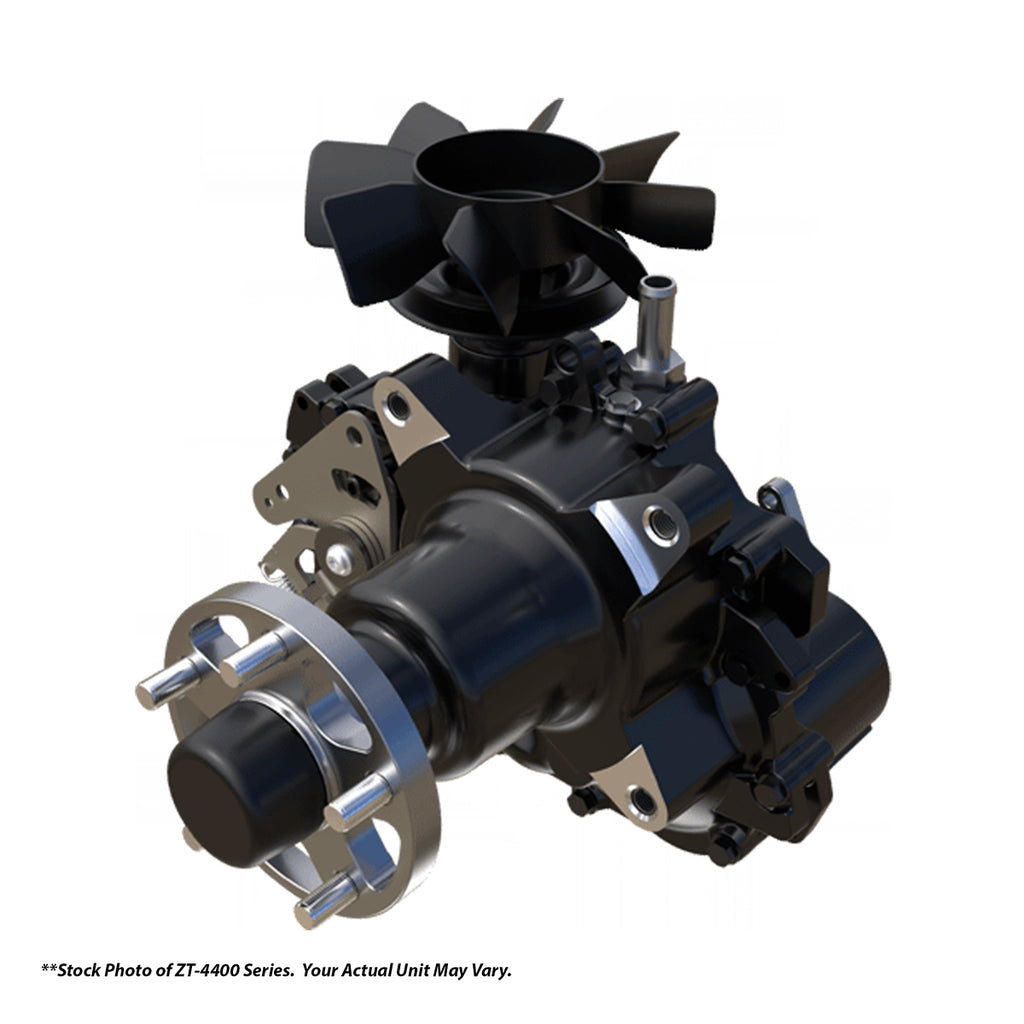

ZT-4400™
OUR MOST HIGHLY EFFICIENT COMMERCIAL DRIVE.
The ZT-4400™ is a revolutionary design, improves operator control but also reduces vibration and noise. We built it for heavy loads – with heavy-duty roller bearings, high-capacity thrust bearing for extended life, a high-efficiency 12cc pump, 16cc motor, and a beefy 1-3/8” axle shaft. Intimidating specs – AND it’s built to last!
- Revolutionary design that improves operator control while reducing vibration and noise
- Perfect for machines up to 1800 lbs
- High capacity thrust bearing for longer life
- Heavy-duty roller bearings
- Large 1-3/8″ axle to support heavier machines
- Performance package – Charge Pump & Shock Valves
SPECIFICATIONS
PUMP DISPLACEMENT - 0.73 in3 /rev [12 cc/rev]
MOTOR DISPLACEMENT - 0.97 in3 /rev [16 cc/rev]
INPUT SPEEDS
- MAX HI-IDLE (NO LOAD) - 3600 rpm
- MIN (LOADED) - 1800 rpm
OUTPUT TORQUE - up to 575 lb-ft [up to 780 Nm]
SPEED - up to 12 mph [up to 19 kph]
GROSS VEHICLE WEIGHT - up to 1800 lbs [816 kg]
AXLE SHAFT DIAMETER - 1.375 in [35 mm]
AXLE SHAFT END OPTIONS
- Tapered
- 4-bolt Flange
- 5-bolt Flange
WEIGHT OF UNIT - 55 lbs [25 kg]
