Description
SPECIFICATIONS
Harvester Guide Bars |
|
Product Family |
Harvester |
Guide Bar Code |
HSF |
Bar Length |
99.06 cm |
Pitch |
.404" |
Gauge |
.080" |
Drive Links |
108.0 |
Tail Mount |
L114 |
PRODUCT FEATURES

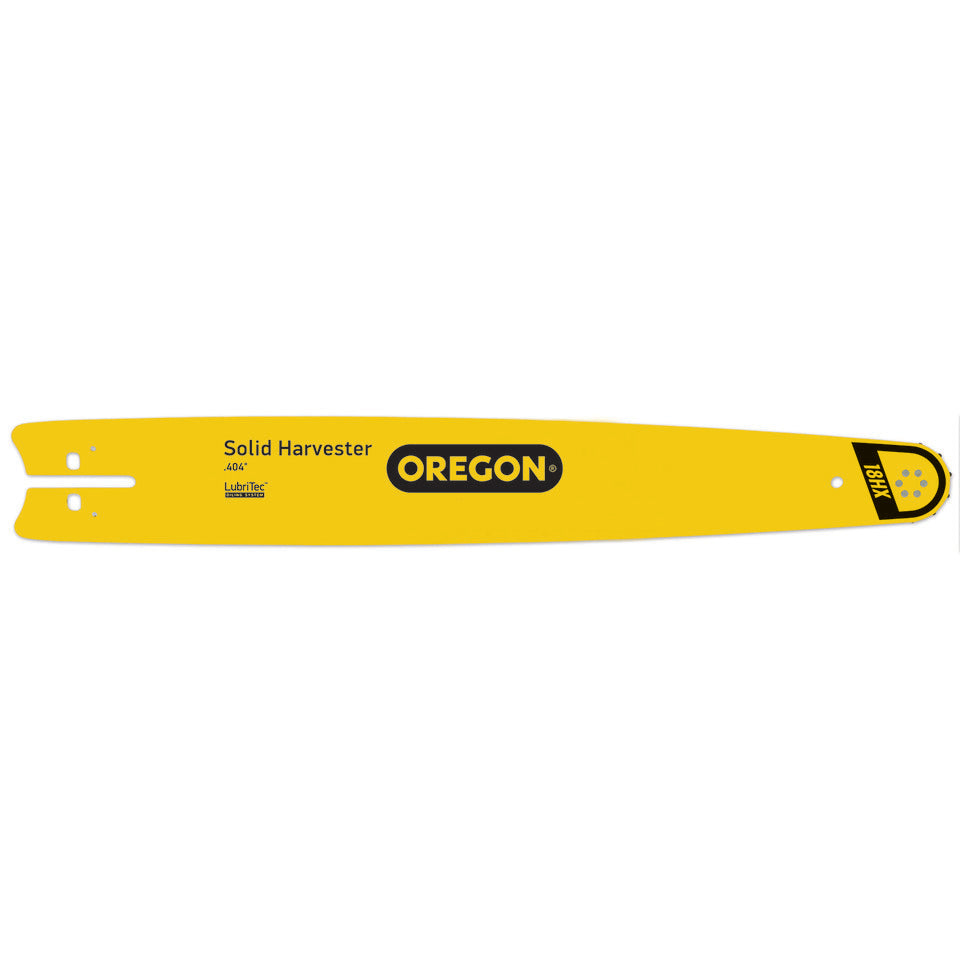

Faster. Stronger. Longer Lasting. Oregon solid harvester (Sprocket nose) guid bar delivers superior performance in demanding, high-speed conditions. This bar resists chipping and features outstanding springback. High-grade alloy-steel material and induction-hardened bar rails make it tough and durable.
PRODUCT DETAILS
- The Solid Nose bars feature a motor-mount configuration designed for efficiency leading to more cutting time
- .404" guide bars are equipped with unique features that facilitate superior performance in demanding, high-speed conditions
- The induction hardening process increases the longevity of your guide bar with precision heat-treated rails and added resistance to wear and chipping
- LubriTec increases the life of your guide bar and saw chain with advanced precision to allow the chain drive links and oil to have closer contact, significantly reducing oil waste
- Our straight and square-milled grooves are designed for consistency, stability, and decreased wear
- Image shown may not reflect actual bar tail motor mount, check Oregon Harvester Catalog for actual tail mount configurations
FITS THE FOLLOWING MODELS
DENHARCO
(DENIS)DELIMBER DT3000, D, DIRECTIONAL FELLER D55, DIRECTIONAL FELLER D56, DIRECTIONAL FELLER D86, DM3000, DM3500, DT3000W
FORESPRO
RST-30C BUTT SAW
HULTDINS
550, 550S, 850, SUPERCUT
PIERCE PACIFIC
BUTT SAW HSD-2845
RISLEY
2200B, LIM-MIT DELIMBER, LM2000, LM2100, LM2300 (with Hultdins Butt saw), lm2200
ROTOBEC
RC 404
WOODKING
650 F2 TENSIONER, 850
REPLACES THE FOLLOWING
CARLTON
90H12B5PRS
GB
FM4 35 80SM, FM435-80SM
GB XV
FM4 35 80XV
IGGESUND
2700-100, BL2700-100
JOHN DEERE
F059286
QIRUI
MN35-80TS
WINDSOR
9210-100-404
