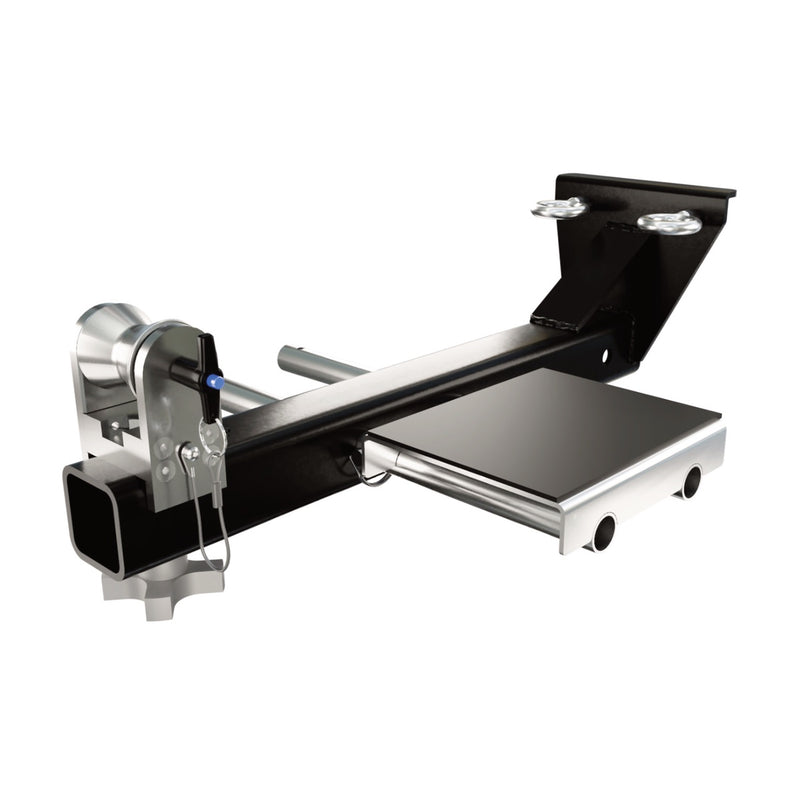

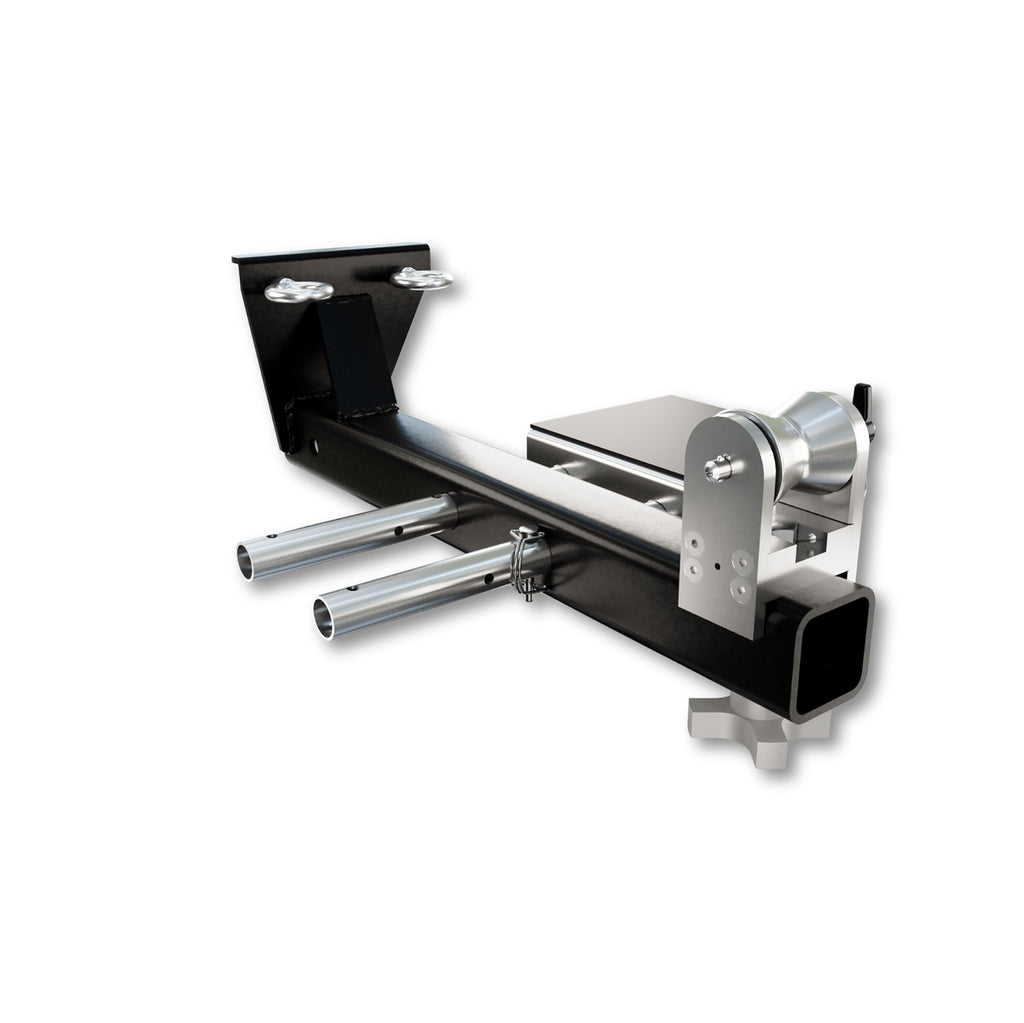

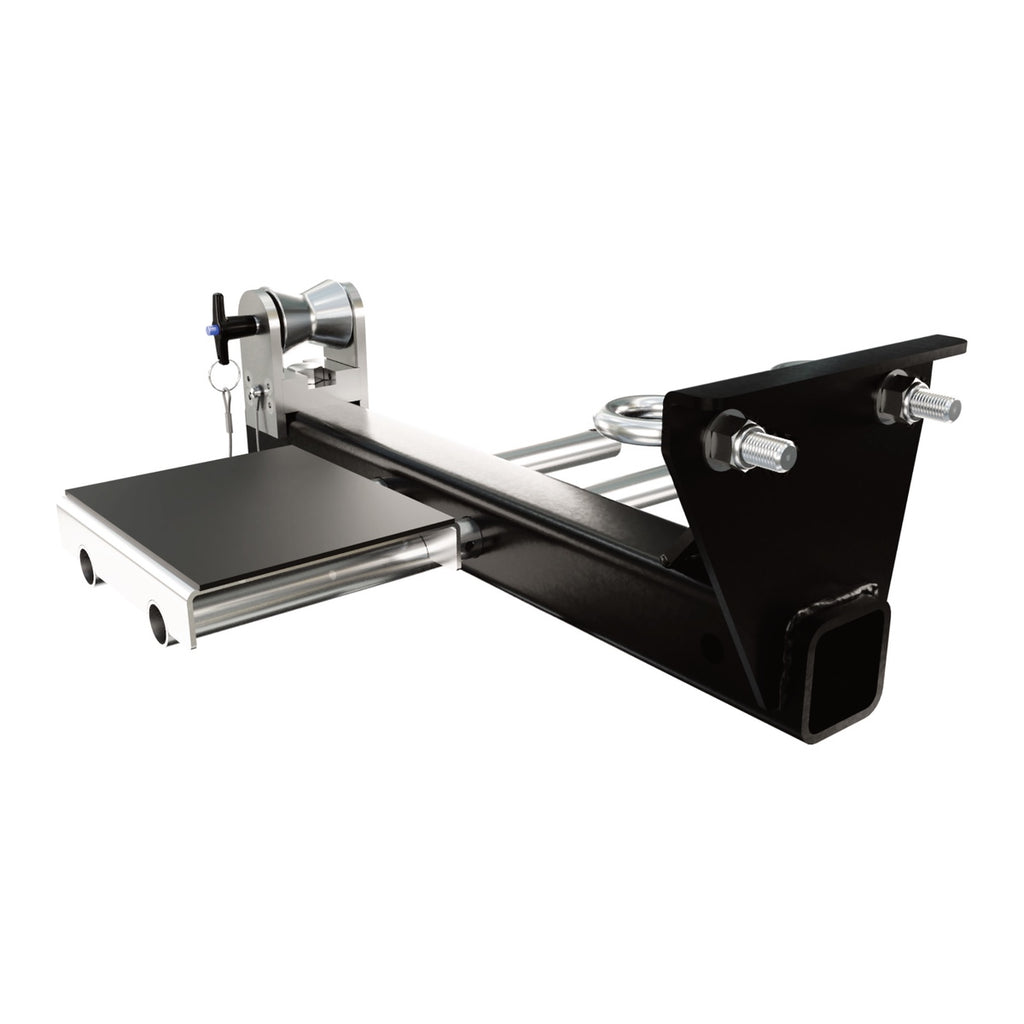

Portable Winch - PCA-1264 - Vertical Pull Winch Support
DESCRIPTION
This winch support is expressly designed for vertical pulling with our winches PCH1000, and PCT1800. If you want to use the winch PCH2000, you will need to use the support PCA-2264.
It is equipped with an adjustable shelf and offers a solid and stable support allowing the winch to be properly seated.
It also has a removable "V" shaped pulley mounted on ball bearings, providing optimum rotation. This pulley redirects the rope vertically at an angle to reach sections of towers or pylons far from the center.
To install the rope, simply remove the "T" handle and pulley, thread the rope, then put the handle and pulley back in place.
Although it was originally designed for lifting, note that it can also be used for pulling when combined with the pivoting anchor (PCA-1332). This accessory therefore makes the PCA-1264 very versatile. Note that when used for horizontal pulling; the "V" pulley is not used.
SPECIFICATIONS
Note: The PCA-1264 cannot be used alone; it must be combined with other accessories to be used. Different combinations are therefore possible depending on the type of operation and the environment. Refer to the figures to discover all the possibilities.
